Split Tube Furnace

[wpseo_breadcrumb]

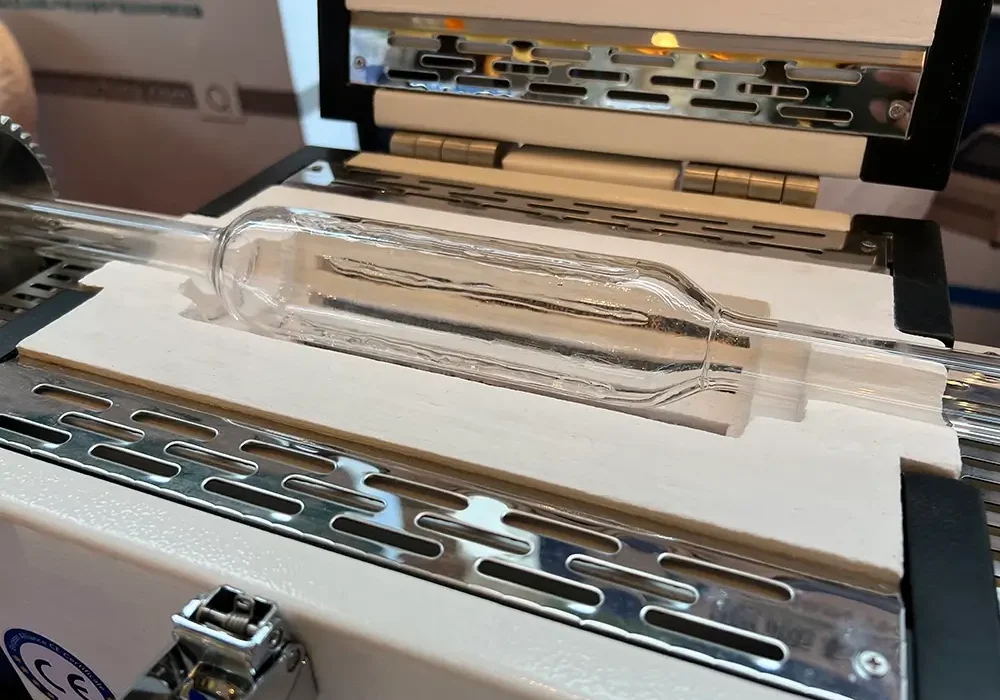

A split tube furnace is designed for the easy installation and removal of work tubes and reaction vessels within.

GTEK split tube furnaces are a two-halves design, joined together with hinges. A clap design between two pieces allows an easy open and close of the furnace.

Our TS-12 range split tube furnace range has a maximum operating temperature of 1200℃ with excellent temperature uniformity.

Check Specifications

Tube-Furnace-with-openable-heating-chamber

At a Glance

Max temp
1200 °C (heating coil)

Furnace Ø
40, 60, 80, 100mm available

Heated length(s)
200mm, 300mm, 400mm, 600mm avaliable

Number of heated zones
single zone or multiple zones

Orientation
All models available orientated either horizontally or vertically

Ideal for

Geology and Mineralogy

Ceramics

Chemistry

Biology

Pharmaceuticals

Metallurgy

TS-12 Specifications

Model	Operation temp (℃)	Max temp (℃)	Furnace Ø (mm)	Heated length (mm)	Input voltage/Max power (V/kW)	Tube material
TS-12 1/40/200	1100	1200	40	200	220V/2kW	Quartz
TS-12 1/40/300	1100	1200	40	300	220V/3kW	Quartz
TS-12 1/40/400	1100	1200	40	400	220V/4kW	Quartz
TS-12 1/60/300	1100	1200	60	300	220V/5kW	Quartz
TS-12 1/60/400	1100	1200	60	400	220V/5kW	Quartz
TS-12 1/80/300	1100	1200	80	300	220V/6kW	Quartz
TS-12 1/80/400	1100	1200	80	400	220V/7kW	Quartz
TS-12 1/80/600	1100	1200	80	600	220V/8kW	Quartz
TS-12 1/100/300	1100	1200	100	300	220V/7kW	Quartz
TS-12 1/100/400	1100	1200	100	400	220V/8kW	Quartz
TS-12 1/100/600	1100	1200	100	600	220V/10kW	Quartz

MODEL NAMES EXPLAINED

TS-12 1/80/300 Split Tube Furnace
TS-12 1/80/300 1200℃
TS-12 1/80/300 Number of heated zones: 1 zone, 2 zones, 3 zones or 5 zones optional
TS-12 1/80/300 Furnace Ø: 40, 60, 80, 100mm
TS-12 1/80/300 Heated Length: 200, 300, 400, 600, ... mm

NOTE

Above split tube furnace with single heated zone are standard models, which are mostly hold in stock, and can be fast delivered.
Customization such as multiple heated zone, vertical orientation, rotating heated tube are avaliable, with a typical lead time of 35 days.
All furnaces are equipped with thermocouple type K.
Maximum continuous operating temperature is 100 °C below maximum temperature.
